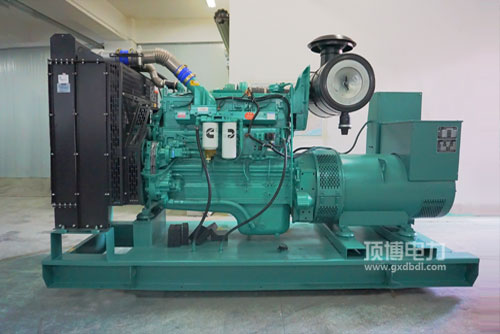

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用发起机燃料经济能力性好: 先进集体的燃料操纵整体，独到的STC、ESTC 等级划分操纵整体，专项 构思的活赛顶端丙烷冷却系统，高电压喷洒燃料，能够充分的吸雾，丙烷复燃能够充分的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用起动因瞬态能优良: 完美无缺的起动因整体化设计构思，搞好团结康明斯有趣的EFC程序，调控计算精度不高，回应时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用打着机升热效率高: 整体化的设计宽敞.形壮装置适度，开机运行稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷舱位 QSNT. QSK19. QSK38. QSK50达到中国人非路线3关键期及北美洲Tier2. Tier 3排出法律标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具而犯性好， 启思想正常运行及维持皮肤保养便捷，生产损坏后可及时更换。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率标准 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去厚度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净重量 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的特征：体积太小， 挤压变高， 排水槽空气的进行加热，容易加载，活动车机开关电源的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机机型	较为常用电机功率(kW)Prime Power	应急公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
